DB101 Ethernet Thermocouple Temperature Data Logger

Description

A two channel thermocouple temperature IOT data logger with Ethernet communications interface. Our dataloggers sample data continuously from power on and make the latest sample available to the BadgerView logging application.

• 0.01°C resolution and accuracy of up to ±0.15% (assuming proper thermocouple calibration and stable operating environment)
• 10 Hz sample rate for all channels
• 50/60Hz mains frequency filtering
• -210°C to +1800°C measurement temperature, dependent on thermocouple selection
• Cold-junction compensation and thermocouple linearisation
• Two channel thermocouple data (available with K, J, N, R, S, T, E, and B type thermocouple connections) – Matching connector to thermocouple type maximises data accuracy
• Ethernet interface allowing access to data from anywhere in the world – requires internet connection and configuration
• Simple and user friendly data logging using the BadgerView application
• Standard 10/100 Ethernet port for data and configuration
• TCP interface makes our loggers ideal for incorporation into IOT and Industry 4.0 manufacturing systems
• Powered by included 5V DC power supply

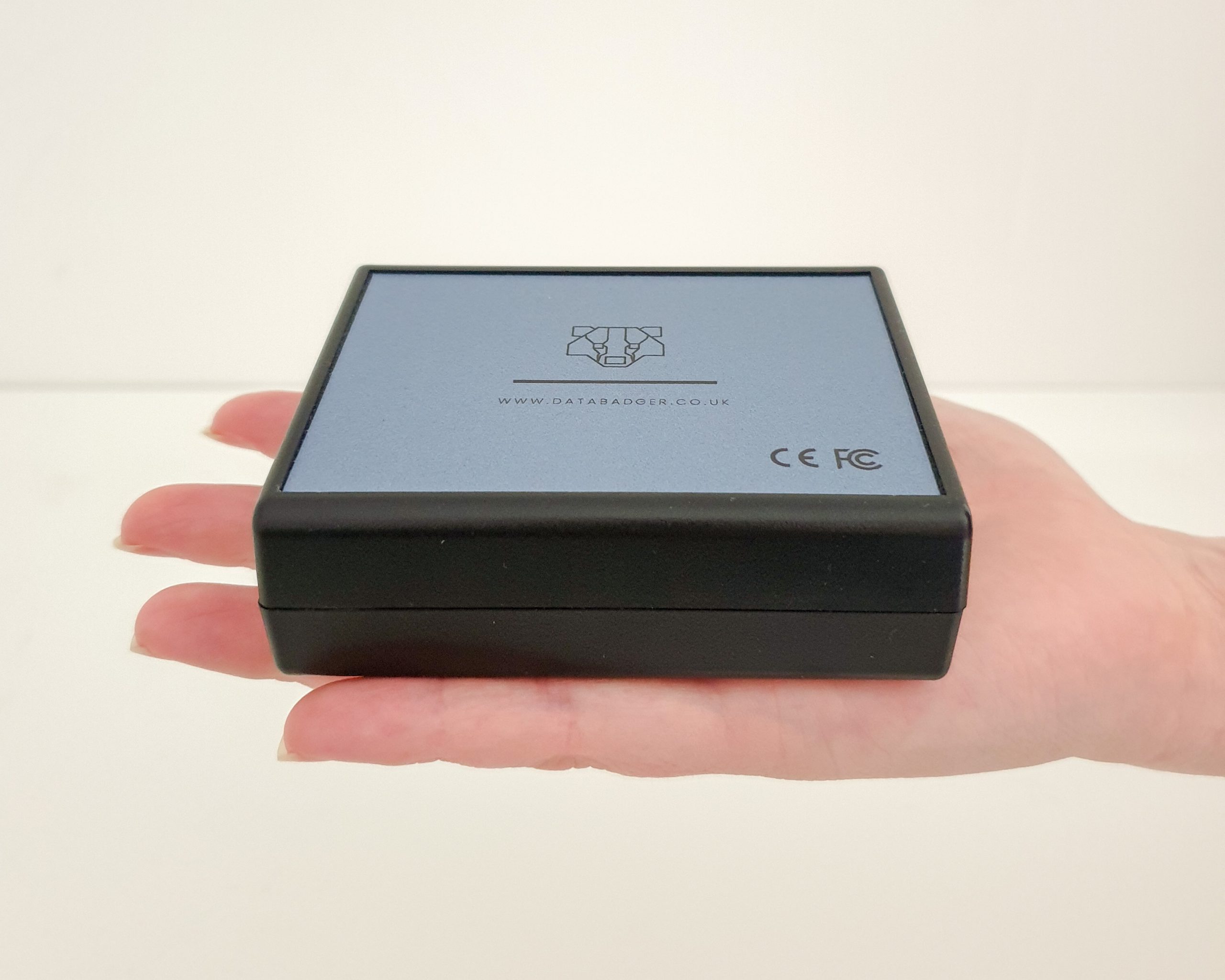

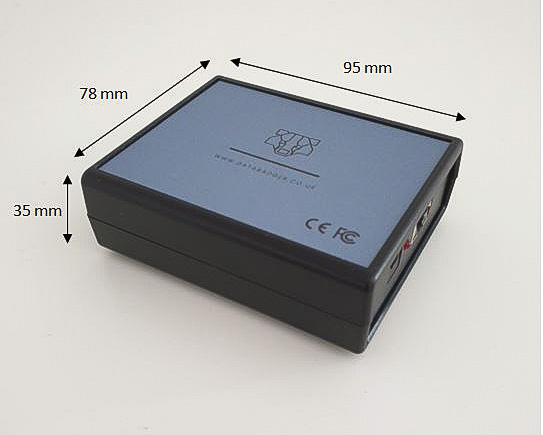

• Small, durable form factor for incorporation into tight spaces

Does not include Ethernet cable or thermocouples.
